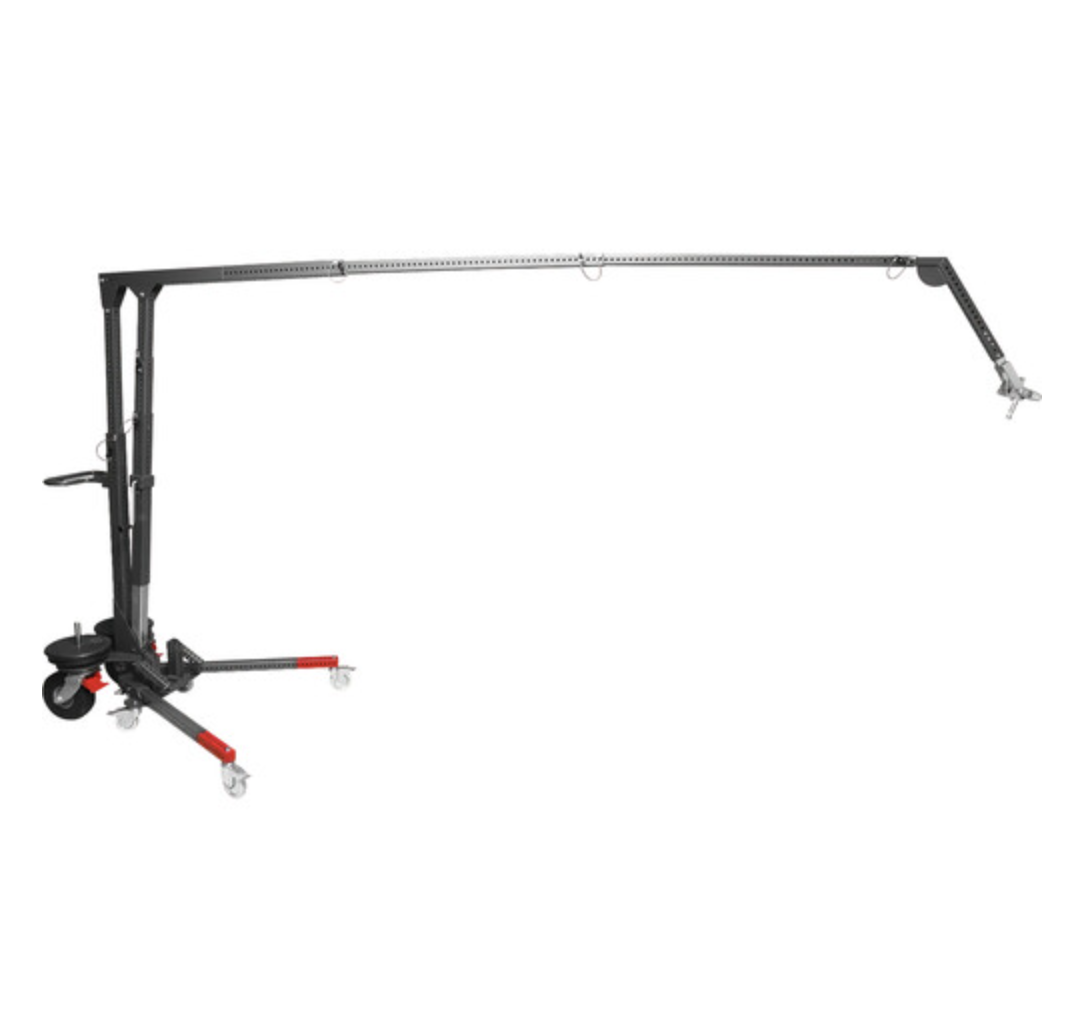

The Matthews Middle MAX Menace Arm is a compact, mobile lighting boom designed for film, television, and commercial production. It provides more than 12 feet of horizontal reach while supporting fixtures up to 80 pounds at full extension. Despite reaching a maximum height of 18 feet, the Middle MAX collapses to just 64 inches for easy transportation in van packages.
Its self-leveling head accepts both Baby Pin and Junior Receiver fixtures and can be locked in three positions: down, up, or out. Heavy-duty puncture-proof tires and a hand-truck-style steering handle make the stand easy to position on stage or on location.
Specifications
- Maximum height: 18 ft (5.49 m)
- Stored height: 64 in (162.5 cm)
- Maximum reach: More than 12 ft (3.66 m)
- Load capacity: 80 lb (36.3 kg) at 12 ft
- Below-grade reach: 6 ft (1.83 m)
- Self-leveling head with Baby Pin and Junior Receiver
- Three locking head positions
- Heavy-duty 10 × 3 in puncture-proof tires
- Hand-truck-style steering handle
- Designed to fit inside van packages
Package Includes
- Matthews Middle MAX Menace Arm
- Ten 25 lb counterweight plates
- Upright Weight Cart
